SCG353 / Right Angle Type
SCG353A043

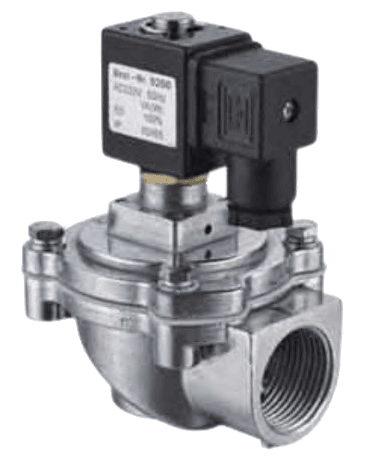

SCG353 series right angle type solenoid valve, 3/4" port size with threaded G/NPT connections. CE and ISO9001 certified.
In Stock
Nationwide Delivery
1 Year Warranty
Certified & Tested
Technical Specifications
Basic Information
ModelSCG353A043
SeriesSCG353
TypeRight Angle Type
Port Size3/4"
Connection TypeThreaded (G/NPT)
Operating Specifications
Working Pressure0.3 - 0.8 MPa
Working Pressure (PSI)43.5 - 116 PSI
Temperature Range-10°C to 70°C
Diaphragm MaterialNBR
Connection TypeThreaded (G/NPT)
Electrical Specifications
Voltage Options
AC110VAC220VDC24V
Certifications & Standards
CE
ISO9001
Key Features
- Compact right-angle design
- Quick response time
- High reliability
- Easy installation
- Low power consumption
Applications
- Dust collection systems
- Pneumatic automation
- Industrial cleaning equipment
- Material handling systems
Durability
Diaphragm Life: Over 1 million cycles
